Many do-it-yourself boat owners joke about “boat yoga”, which is the act of contorting oneself to try to work on otherwise inaccessible parts of the boat, but good access to everything is vital. It’s not the sort of feature that attracts crowds at a boat show, but there are few things more important on a serious cruising boat than easy access to every corner, every fastener, and every component of all the systems. The more a boat gets used, and the older it becomes, the more this holds true. The ideal would be some sort of access for every square inch of the inside of hull. Planning for access when designing and building something as complex as a cruising sailboat is is not always easy to do, but every hour spent ensuring that an actual human being can reach and work on everything inside that boat is time well spent.

I can’t count how many times a small task–one that should have been simple and easy to accomplish, like replacing a hose or a fastener–became a difficult slog simply because the components were difficult or impossible to access. I have spent many hours squeezing into cramped engine compartments, reaching into bilges or behind cabinetry, cursing glassed-in fasteners or hoses, and trying to pull wires through spaces that were never designed to be accessed once the factory had closed them up. As a boat ages, eventually every system and most every fastener will need to be serviced if one wants to keep that boat in good working order. If that boat sees a lot of ocean miles, all of the mechanical systems will need regular service, possibly under conditions that are less than ideal. For example, if a fuel filter can’t be accessed quickly enough it could easily mean serious damage, or even loss of the boat. That’s no exaggeration. It has happened many times.

Most of the time I spend on boat projects is spent dreaming up ways to actually be able to get to the part that I need to work on. The task might be simple–replace a y-valve, for instance, but the space too small to even allow me to see the mounting screws, let alone give me room to try to wrestle the stuck, old hoses off the piece before trying to get in there with a new one. What might take less than an hour with easy access to the part can easily turn into a long, frustrating battle.

Considerable time is spent maintaining a cruising boat if one wants to keep things in top condition, and occasionally major repairs to systems and structure are necessary. Easy access can make this work, if not a pleasure, then at least straightforward. Even simple maintenance tasks are complicated when access is poor. How many boat owners are ignoring things that they know need service simply because poor access make working on those things a burdensome task? Many seacocks, for instance, die prematurely because they are difficult to reach, so they don’t get opened and closed regularly. It used to take me more than an hour to change the impeller in the raw water pump of the engine on my old Contessa 26 because I had to take the entire water pump off in order to have enough room to pull the impeller. I had to remove the cockpit floor to change the oil. Needless to say, I didn’t check those things as often as I would have if the access had not been so demanding.

The primary fuel filter for this engine can be reached through a cockpit locker.

Good access is about more than making a job easy–there is a safety factor as well. I have already mentioned the importance of being able to quickly get to a primary fuel filter, but there are many other things that need at least reasonably good access even if they aren’t frequently serviced, such as the shaft packing. It doesn’t happen often, but neglected shaft packing has caused boats to sink. Through-hull fittings–even ones above the waterline–should be placed where they can be reached because hoses can crack, and through-hulls can fail. That easily-forgotten little drain fitting near the waterline might become a real problem if the hose breaks. Many chainplates–those very important parts of a sailboat that transfer all the rigging loads to the hull–are neglected until they fail, simply because they are located where they are difficult to inspect or replace.

If the hull is breached for whatever reason, the chances of being able to effect some sort of repair are greatly enhanced by simply being able to get to where the leak is. Even finding a leak can be troublesome on some boats. I once sailed on a boat that began taking on water from an unidentified source when we were almost 100 miles from the nearest all-weather inlet. By the time we made it into the harbor I was pumping every 30 minutes to keep the water below the floorboards. The boat had a structural grid fiberglassed into the hull. Water could flow under this, but there was no access to the space between the grid and the hull except through a small hole where the bilge pump was placed. Though I had spent hours searching, I couldn’t find the source of the leak until after we docked and a strong wind blew up a chop from astern. A locker drain in the swim platform had cracked between the locker and the hull, and I could only see it squirting water into the boat when the short waves from the harbor slammed forcefully under the counter. The clearance was too tight between the bottom of the locker and the inside of the hull to even reach my hand in from inside the boat, so I had to put some waterproof epoxy over the crack as a temporary measure and then wait to repair it from the outside after the boat was pulled out of the water.

How to access the systems is always one of the first things on my mind when I inspect a boat. How easy is it to access the service points on the engine?  Is there somewhere, if not comfortable, then at least manageable to sit or lie when working on the engine? (This is something that needs to be doing regularly, so it’s worth taking the time to try it out rather than just looking in and thinking, “Well, it looks a little tight in there, but it’s probably not too bad…” I’ve thought that before, and then later found that I had to modify tools to fit those awkward places.) Can I easily reach all parts of the steering system? Are the important parts of the electrical system easy to reach for inspection and service? How difficult is it to inspect the bilge pumps? Tanks? Hoses? Can I follow the propane line from tank to stove and reach all the connections? If there is a cabin liner, can I still get to deck fasteners and backing plates? Can I get to the fasteners for the chainplates? Has provision been made for removing the engine? How about cleaning and repairing the tanks? Can the bulkhead tabbing and hull/deck joint be inspected? Centerboards and daggerboards can be difficult and expensive to service on any boat, though they are wonderful for reducing draft. The hinge pin and lifting mechanism on a centerboard will need attention eventually. There are many more things that could be put on this list, for sure.

Certain construction methods naturally leave better interior access than others. Fiberglass boats with individually glassed-in bulkheads, screwed or bolted cabinetry, and removable ceilings and overheads with no fixed liners are relatively easy to work on when it comes time to repair them, whereas boats that are built with full liners can be a nightmare when it comes time to service certain systems or fittings if the liner was not designed with adequate access points. A full fiberglass ceiling liner is easy to keep clean, but might mean cutting a lot of holes when the deck fittings begin to leak, for instance! Even a partial liner can be a problem. Here’s a common one I see:  showers built in such a way that the drain fittings and hose are not accessible.

Metal boats built with flat bar or plate stringers, rather than “T” shaped, allow one to reach all interior surfaces. Interior accommodations on steel boats are ideally demountable for interior inspection, painting and repair, as steel usually rusts from the inside out…

Wooden boats need good air circulation throughout their interiors to avoid rot, and should to be built so that all corners are accessible for cleaning and inspection.

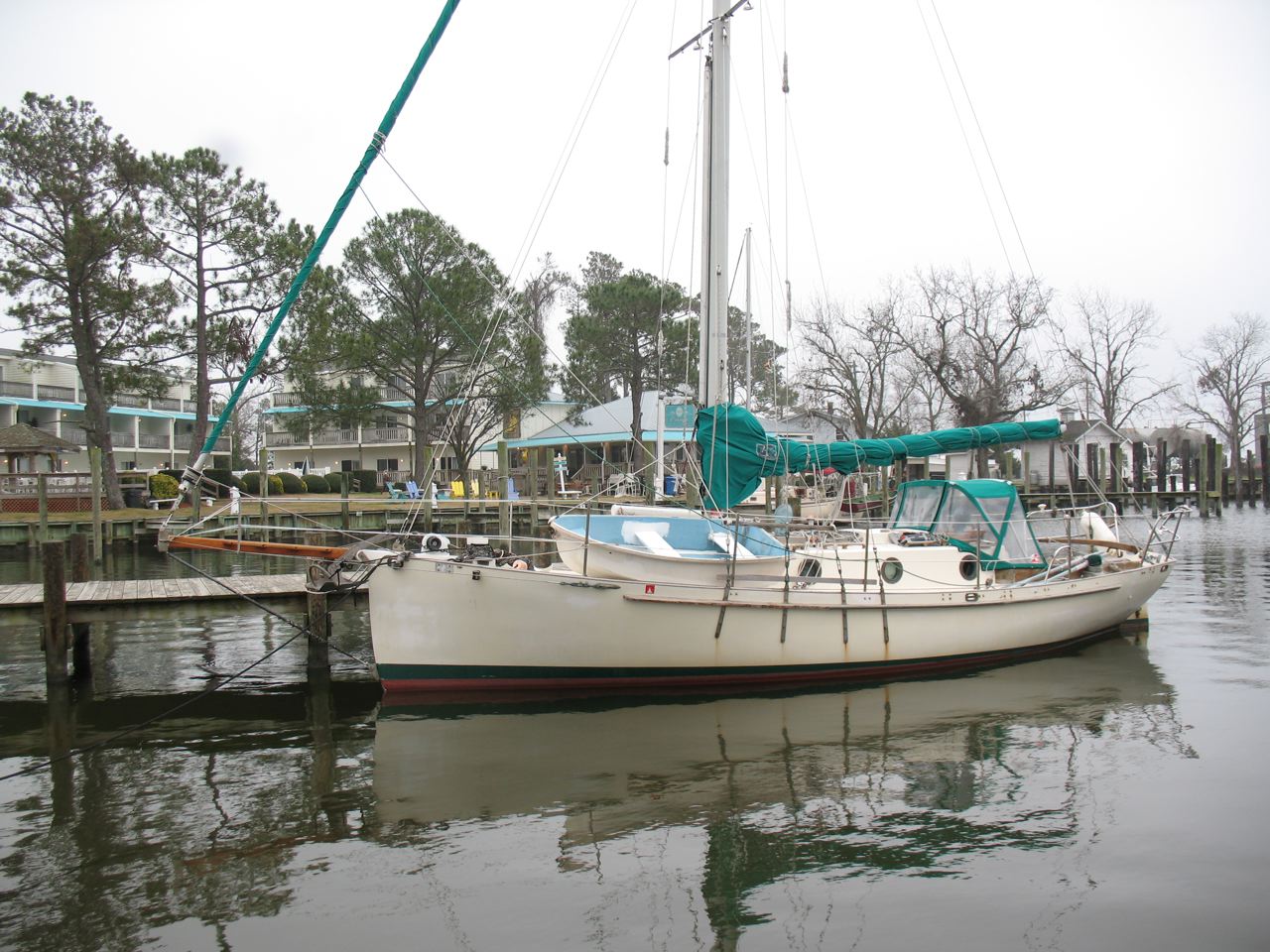

On my own boat, the Dreadnought 32 named Idle Queen, there is good access almost everywhere. This is something I was looking for specifically when I decided to buy her. Idle Queen was in need of a major refit when I found her, so I knew I would be inspecting and probably working in every nook and cranny. There were only a couple of square feet that I could not easily reach when I bought her—just the farthest forward part of the anchor locker. I can’t quite squeeze past the Sampson posts to reach the inside up there at the very point of the bow. Well, it came as no surprise to me that during her refit I had to get into that space in order to remove the fasteners that hold the gammon iron to the stem. After some reflection, (and some time spent trying to tape the nuts to my wrench, which was in turn taped to a boathook in an effort to start threading them onto their bolts without being able to get my hands in there), I ended up putting an inspection plate in the deck to replace the port chain pipe to solve the problem of how to access that small area. This change allows future access to the space as well as giving me a place to put an extra ventilator when in harbor. Whenever I work on something that didn’t have good access, I always try to allow for future service.

Idle Queen has a few unusual features that make her most-serviced systems easy to live with. She gives up a lot of interior space to her engine room, but that makes working on the engine a breeze. Changing the oil takes all of ten minutes, including cleanup. All of her tanks are placed far enough away from the hull that it is possible to get behind them, and every tank can be removed by unbolting the tie-downs. Pumps are placed where they are easily removed for service, and hoses and wiring run where they can be inspected and replaced if needed.  She has insulation throughout most of her hull, but holes have been cut to access fasteners. I can reach my hand into every corner of the bilge, even the deepest part, and I can physically climb into the lazarette. Hiding systems took a backseat to serviceability when they were installed. I actually appreciate Idle Queen’s utilitarian finish.

Easy access to most everything aboard Idle Queen has helped to keep the number of enjoyable hours spent aboard ahead of those spent contorted and frustrated at having to spend a lot of extra time doing something that is only difficult because it is problematic to reach. Of course, I still tend to underestimate how  many hours will go into my boat projects on Idle Queen, but at least it’s not often because I can’t figure out how to access what needs to be worked on…
